Product Overview

SG 3 phase Isolation Transformer(100 kva Isolation Transformer), is natural cooling indoor, it is applicable to the circuit of AC 50Hz~60Hz, 1000V and below. It(50 kva Isolation Transformer) can be used in control power, local lighting and indicating power supply of machine tool mechanical equipment and other general electric appliance, also be used as small type power.
(45 kva Isolation Transformer)Meets the standard: Q/ZT 525.

Model and Meaning

Normal working conditions and installation conditions

Altitude: not exceed 2000m.
Ambient temperature: -5°C~+40°C (limit value -25°C).
Relative humidity is not more than 50% at +40°C. Relative humidity can be higher at the lower temperature. The monthly average max relative humidity of wetest month is 90%, and the average monthly min temperature of the month is +25°C.
In the ambient, there should not has the gas and dust that corroding metal, destroying insulation. The transformer should not be corroded by water, rain or snow.
There is no serious vibration and bumps at the installation site.
The power(10 kva Isolation Transformer) supply voltage waveform is an actual sine wave, and the three-phase power supply is approximately symmetrical.

Structure Feature

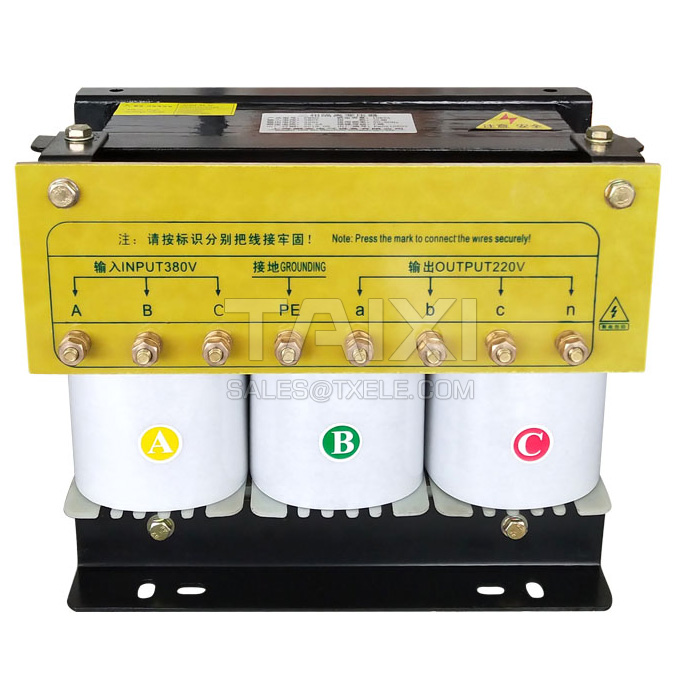

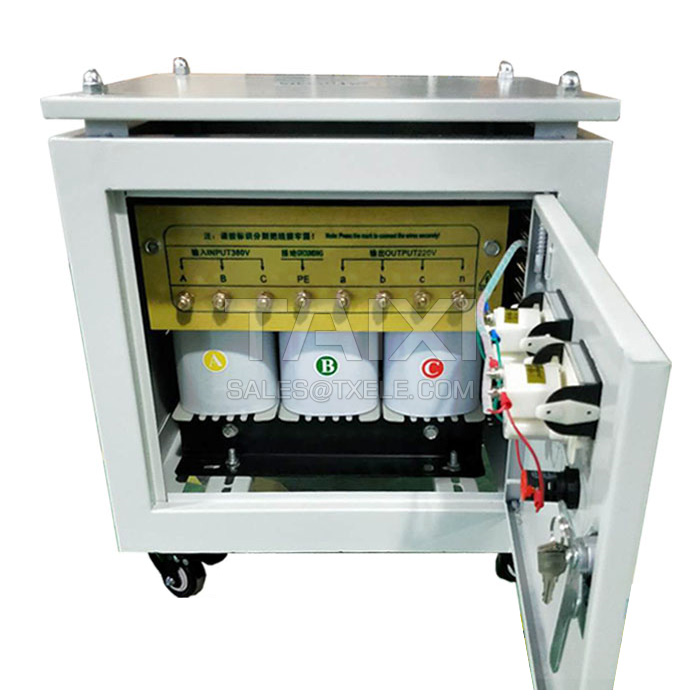

The transformers(25 kva Isolation Transformer) have two body types: exposed and fence. It has the advantage of low consumption, small noise, better performance against fire and free of pollution etc. The shell of the protective type is made of steel plate, the transformer is in the shell. There are several holes outside the shell to installation the power lines. In addition, this type can add the monitor meter of the voltage and current according to the customer request, And if the capacity is above 80KVA, it can also add the axial flow fan or wheels for moving.

Outline and lnstallation Dimension

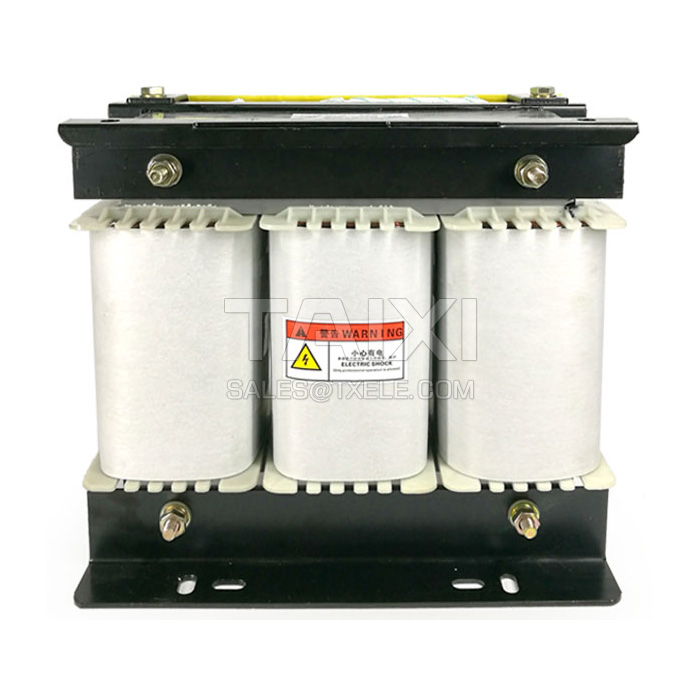

The outline of SG (15 kva Isolation Transformer) exposed dry cooling type transformer (as sheet, fig.1)
The outline of SG (30 kva Isolation Transformer) fence dry cooling type transformer (as sheet, fig.2, fig.3, fig4, fig.5)


Model Capacity
(KVA)
Operating voltage (V) Connecting mark Outline dimension (mm) Installation dimension (mm) K*J
(Mounting holes)
Exposed type Fence type Exposed type
Input Output B max D max E max B max D max E max A±5 C±5
SG-0.15 0.15 400
380
220
380
220

Yyno
(Y/Yo)

Yd
(Y/△)

Dy
(△/Y)

Dd
(△/△)

200 120 180 220 240 225 125 64 φ6x12
SG-0.3 0.3 200 120 180 220 240 225 125 64
SG-0.5 0.5 200 125 180 220 240 225 125 74
SG-0.75 0.75 250 146 240 300 280 265 150 96 φ8x16
SG-1 1 250 156 240 300 280 265 150 106
SG-1.5 1.5 330/315 220/220 300/280 390/330 355/315 300/265 220 103
SG-2 2 330/315 220/220 300/280 390/330 355/315 300/265 220 103
SG-2.5 2.5 330/315 240/240 300/280 390/330 355/355 300/285 220 120
SG-3 3 330/315 240/240 300/280 550/510 355/355 300/285 220 120
SG-4 4 400/360 340/320 360/340 550/510 440/410 600/550 280 125 φ10x20
SG-5 5 400/360 340/320 380/340 550/510 440/410 600/550 280 125
SG-6 6 400/360 340/320 380/340 550/510 440/410 600/550 280 125
SG-8 8 450/400 350/320 400/350 580/560 470/440 620/600 280 136
SG-10 10 480/430 370/350 450/390 620/560 470/440 680/600 310 150 φ13
SG-15 15 530/480 380/355 480/410 680/620 470/440 700/640 310 155
SG-20 20 550/520 390/360 480/430 680/650 470/440 700/650 310 160
SG-30 30 730/690 440/430 570/550 900/870 630/600 800/790 420 275 φ12.5 x 25
SG-40 40 770/710 450/450 570/550 970/970 640/640 830/830 420 275
SG-50 50 810/770 470/460 670/620 1000/970 640/640 900/830 420 300
SG-60 60 870/790 490/480 710/620 1060/1000 680/640 950/870 420 300
SG-80 80 930/860 520/500 720/620 1140/1080 890/860 1180/1080 420 310
SG-100 100 970/870 530/520 770/670 1190/1140 900/870 1260/1140 420 320
SG-150 150 1080/960 600/580 820/750 1300/1200 1000/990 1320/1300 640 350
SG-200 200 1150/1000 620/600 850/830 1420/1280 1010/1010 1350/1320 680 370
SG-300 300 1150 750 1000 1480 1020 1480 750 460 φ16
SG-500 500 1350 920 1260 1700 1500 1700 820 510
Note:
1. The dimensions of the above only for reference, when the input current is more than 300A, the customer need to order specially, and the size will change correspondingly.
2. You can choose the rated input/output voltage in the sheet arbitrarily according to the demand.
3. The voltage and size out of the sheet, should confer with consumer on their demand.

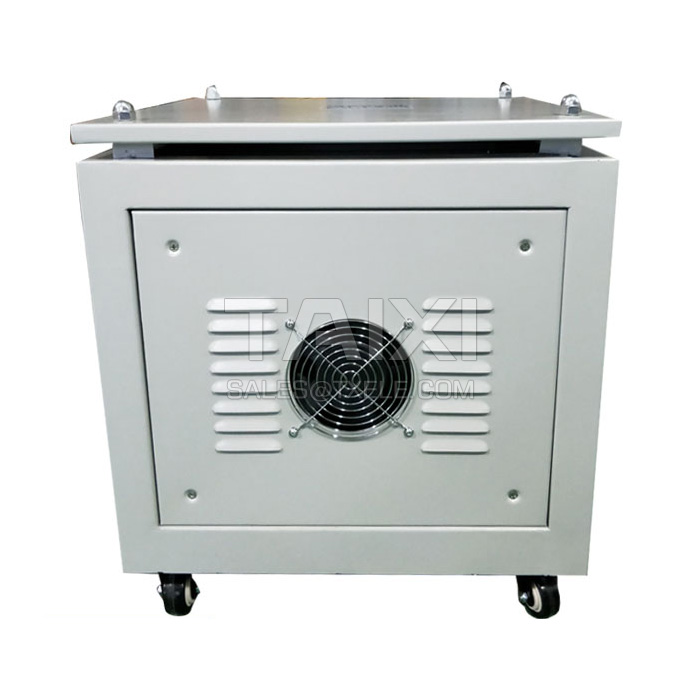

4. SG-100kVA Isolation Transformer and above fence type transformer body have wheels and fan cooling system, with ammeter and voltmeter, as fig.5.
5. SG-4kVA~50kVA Isolation Transformer fence type transformer only have body, with one indicator light of power, as fig.3, fig.4.
6. SG-0.3kVA~3kVA 10kVA Isolation Transformer fence type transformer's wiring terminals are outside, with an indicator light of power, as fig.2.
